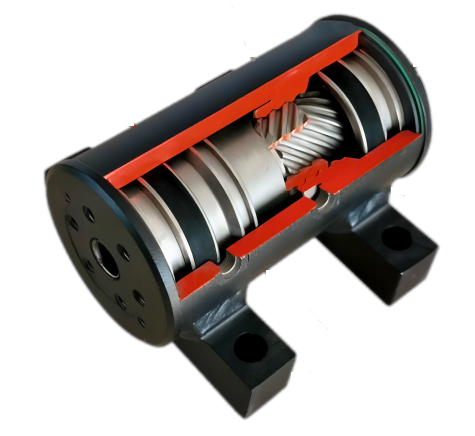

A helical hydraulic actuator, also known as a helical rotary actuator, is a specialized type of hydraulic actuator designed to convert hydraulic pressure into precise rotary motion using a helical mechanism. Here’s an in-depth look at helical hydraulic actuators:
Helical Piston: The piston has a helical groove that matches a corresponding groove in the housing.
Housing: Contains the helical grooves and the hydraulic fluid.
Rotary Shaft: Connected to the piston and outputs the rotational motion.
Seals and Bearings: Ensure smooth operation and prevent fluid leakage.
Hydraulic Pressure: Hydraulic fluid is introduced into the actuator, creating pressure.
Piston Movement: The hydraulic pressure pushes the helical piston, causing it to move linearly.
Helical Groove Interaction: The interaction between the helical grooves in the piston and the housing converts the linear motion of the piston into rotational motion.
Shaft Rotation: The rotary shaft, attached to the piston, rotates as the piston moves, providing the desired rotational output.
Torque and Speed: Helical actuators can provide high torque and controlled rotational speed.
Angle of Rotation: These actuators can achieve a wide range of rotation angles, from a few degrees to several complete turns.
Compact Design: The helical mechanism allows for a compact and efficient design.
Robotics: For precise rotational movements and positioning.
Aerospace: In flight control surfaces and landing gear systems.
Industrial Machinery: For automation tasks requiring precise rotary motion.
Medical Equipment: In devices requiring controlled and accurate rotational movements.
High Precision: The helical design allows for precise control of the rotation.
Compact and Robust: Suitable for applications with space constraints and harsh environments.
Smooth Operation: Provides smooth and continuous rotational motion without backlash.
Regular Inspection: Check for wear and tear on seals and bearings.
Fluid Maintenance: Ensure hydraulic fluid is clean and at the appropriate level.
Leak Checks: Regularly inspect for any hydraulic fluid leaks.
