Torque

Drive

@3000psi

In-lb

1700

3000

5500

9500

15000

25000

@210bar

Nm

190

340

620

1080

1700

2850

Holding

In-lb

5600

10600

16800

33600

50500

83200

Nm

630

1200

1900

3800

5700

9400

Maximum Moment Capacity

Cantilever mount

In-lb

5000

9000

20000

50000

11000

100000

Nm

565

1020

2260

5650

4990

11300

Straddle mount

In-lb

5000

9000

20000

50000

11000

100000

Nm

565

1020

2260

5650

4990

11300

Capacity

Radial

lb

2000

3000

4000

8000

11000

15000

kg

907

1360

1850

3630

4990

6800

Axial

lb

2000

3000

4000

8000

11000

15000

kg

907

1360

1850

3630

4990

6800

Displacement

180°

in³

4.2

7.1

11.7

22.9

33.7

55.8

cm³

69

117

192

375

552

915

360°

in³

7.8

14.2

23.7

44.8

67.4

112.3

cm³

128

233

389

734

1105

1840

Weight

180°

lb

18

27

33

58

100

129

kg

8

12

15

26

45

58

360°

lb

22

36

42

82

133

193

kg

10

16

19

37

60

87

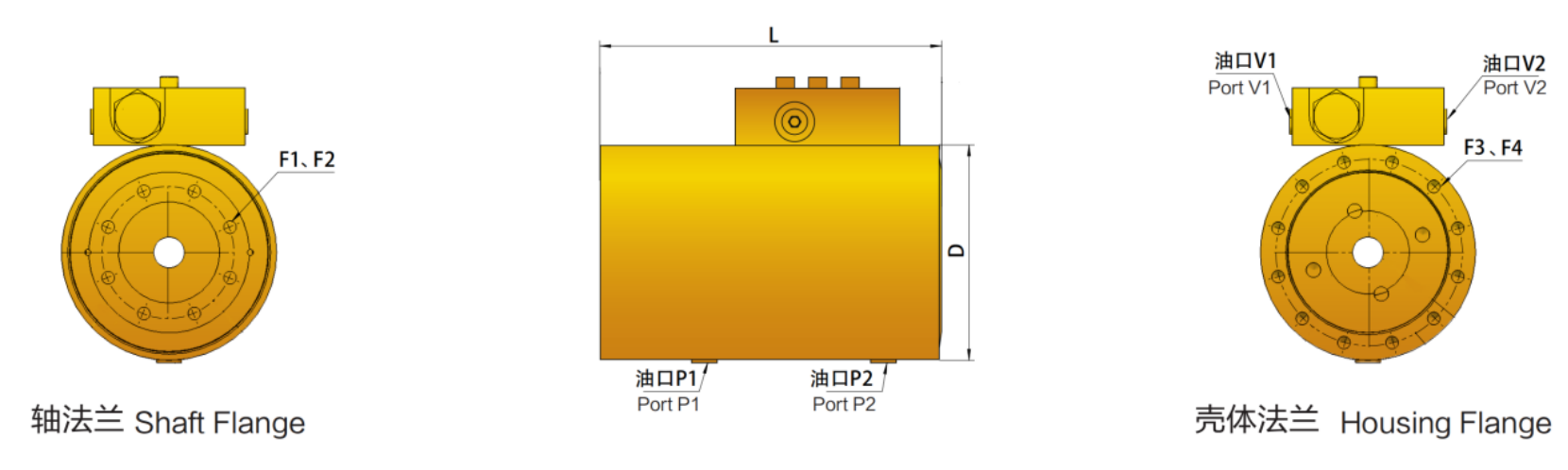

Dimension

L(Length)

180°

in/mm

5.50/140

5.63/143

6.13/156

7.25/184

8.83/224

9.50/241

360°

in/mm

7.02/178

7.45/189

8.35/212

10.15/258

12.25/311

13.64/346

D(Diameter)

in/mm

3.93/100

4.68/119

5.31/135

6.67/135

7.75/197

8.88/225

F1,F2

inch

8X5/16-18X0.5

8X5/16-18X0.5

12X3/8-16X0.63

12X1/2-13 X0.75

12X1/2-13 X0.75

12X5/8-11X1.0

Ø2.125 B.C.

Ø2.875 B.C.

Ø3.125 B.C.

Ø4.000 B.C.

Ø5.000 B.C.

Ø5.500 B.C.

metric

8XM8-1.25X12

8XM8-1.25X12

12XM10-1.5X14

12XM12-1.75X19

8XM8-1.25X12

12XM16-2.05X25

Ø54 B.C.

Ø73 B.C.

Ø80 B.C.

Ø102 B.C.

Ø127 B.C.

Ø140 B.C.

F3,F4

inch

8X5/16-18X0.5

8X5/16-18X0.5

12X3/8-16X0.63

12X1/2-13 X0.75

12X1/2-13 X0.75

12X5/8-11X1.0

Ø2.125 B.C.

Ø2.875 B.C.

Ø3.125 B.C.

Ø4.000 B.C.

Ø5.000 B.C.

Ø5.500 B.C.

metric

8XM8-1.25X12

8XM8-1.25X12

12XM10-1.5X14

12XM12-1.75X19

8XM8-1.25X12

12XM16-2.05X25

Ø54 B.C.

Ø73 B.C.

Ø80 B.C.

Ø102 B.C.

Ø127 B.C.

Ø140 B.C.
