Products

Torque

Drive

@3000psi

In-lb

4500

8200

15000

25000

30000

39000

@210bar

Nm

500

930

1690

2850

3390

4400

Holding

In-lb

11500

21200

38900

63700

71600

93000

Nm

1300

2400

4400

7200

8100

10500

Maximum Moment Capacity

Cantilever mount

In-lb

12000

22000

48000

100000

11000

140000

Nm

1360

2490

5420

11300

12700

15800

Straddle mount

In-lb

22500

40000

90000

200000

223000

280000

Nm

2540

4520

10170

22600

25230

31650

Capacity

Radial

lb

3050

4700

9230

12300

15500

21000

kg

180

2125

4175

5565

7000

9450

Axial

lb

1100

1500

2200

3100

3450

3900

kg

500

680

1000

1400

1550

1770

Displacement

180°

in³

8.91

14.58

26.85

44.61

53.82

cm³

146

239

440

731

882

1080

Weight

180°

lb

29

40

69

122

147

176

kg

13

18

31

55

66

79

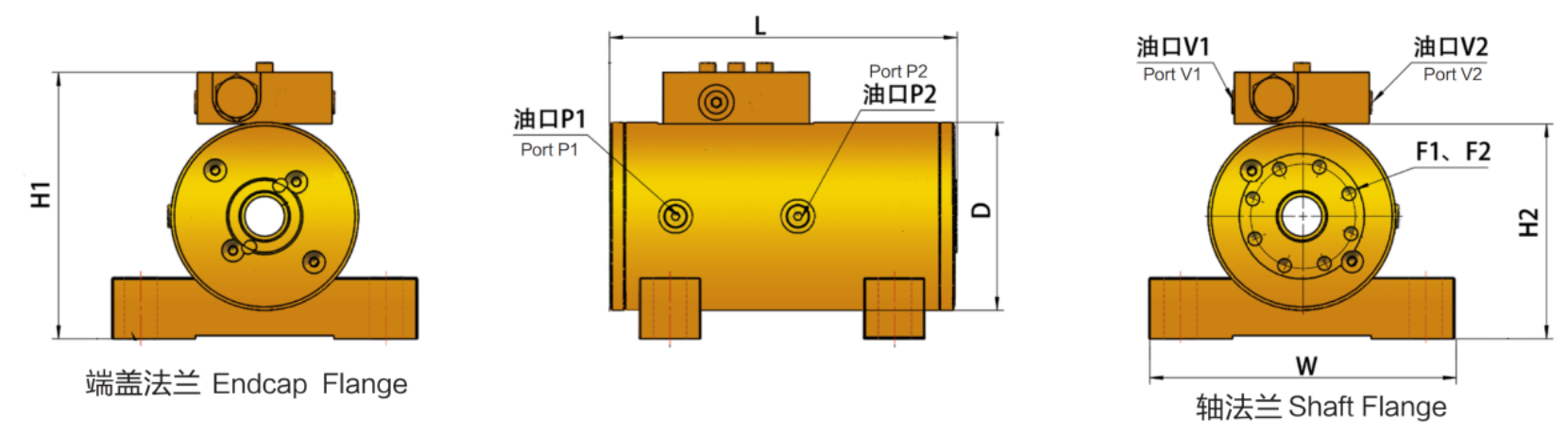

Dimension

L(Length)

in/mm

7.40/188

8.50/135

9.75/248

8.66/220

9.25/235

9.65/245

D(Diameter)

in/mm

4.10/104

4.60/117

5.60/142

6.70/170

7.15/182

7.70/196

H(Height)

H1

in/mm

5.90/150

6.54/166

7.44/189

8.82/224

9.25/235

9.80/249

H2

in/mm

4.67/119

5.32/135

6.21/158

7.60/193

8.04/204

8.60/218

W(Width)

in/mm

7.00/178

7.50/191

9.75/248

11.00/279

12.00/305

13.00/330

F1,F2

inch

6X3/8-16X0.54

8X8/16-16X0.54

8X1/2-13X0.75

8X3/4-10 X1.13

8X3/4-10 X1.21

10X3/4-10X1.25

Ø2.125 B.C.

Ø2.625 B.C.

Ø3.375 B.C.

Ø4.000 B.C.

Ø5.000 B.C.

Ø4.750 B.C.

metric

6XM10-1.5X13

8XM10-1.5X15

8XM12-1.75X19

8XM20-2.5X30

8XM20-2.5X31

10XM20-2.5X32

Ø54 B.C.

Ø65 B.C.

Ø85 B.C.

Ø102 B.C.

Ø110 B.C.

Ø121 B.C.
